GardIn indoor gardening system (based on ECS)
GardIn is an extremely powerful/configurable indoor gardening monitoring/control system (based on ECS).
It was originally developed (and extensively enhanced/tested) for an organic mushroom company (which went out of business due to insufficient sales).
It may be used with any sensors/relays/lights supported by ECS.
Your system's layout is defined by the Properties below (among others).

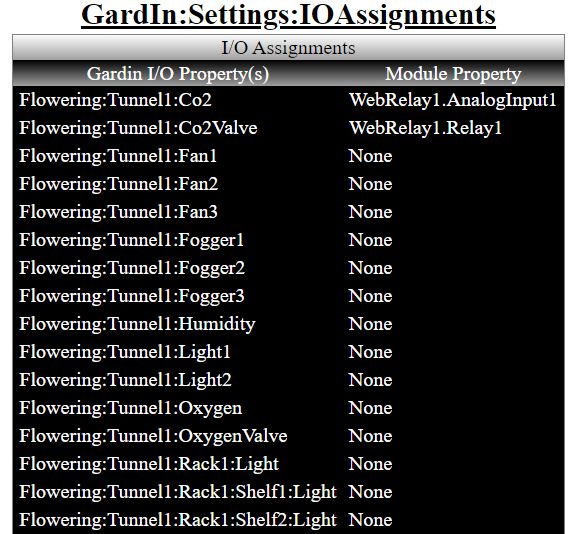

Any input/output may be assigned to any tunnel(s)/rack(s)/shelf(s) (see I/O Assignment table below).
Supports MySQL and SQLite databases (for maintaining/plotting histories of temperatures/lighting/etc).
Emails detailed alarm info (e.g. "Temperature (95) is > maximum (90) in Growth:Tunnel1")
To experiment with a simulated configuration, copy \ecs\gardin.cfg to main.cfg, and run ECS.
Please let us know if you have questions. We can assist as needed with setup and/or customization (for little or no charge).
| Property | Description |
| DataBaseObject | SQLite or MySQL database (to record histories of temperatures/etc, all of which may be plotted) |
| EmailObject | EMail Object used to report alarms (e.g. "Temperature (95) is > maximum (90) in Growth:Tunnel1") |
| EmailReportHours | Hours when alarm emails may be sent |
| Layout: | |
| TunnelType1:Name | Name of 1st tunnel type ("Growth", "Flowering", etc) |
| Count | # of these tunnels |
| RacksPerTunnel | # of racks per tunnel |
| ShelvesPerRack | # of shelves per rack |
| TunnelType2:Name | Name of 2nd tunnel type ("Growth", "Flowering", etc) |
| Count | # of these tunnels |
| RacksPerTunnel | # of racks per tunnel |
| ShelvesPerRack | # of shelves per rack |
| TunnelType3:Name | Name of 3rd tunnel type ("Growth", "Flowering", etc) |
| etc | etc |
| Tunnel I/O and ranges: | |
| Co2sPerTunnel | # of CO2 sensors per tunnel |
| FansPerTunnel | # of fans per tunnel |
| FoggersPerTunnel | # of foggers per tunnel |
| HumiditiesPerTunnel | # of humidity sensors per tunnel |
| LightsPerTunnel | # of lights per tunnel |
| MistersPerTunnel | # of misters per tunnel |
| OxygensPerTunnel | # of oxygen sensors per tunnel |
| TemperaturesPerTunnel | # of temperature sensors per tunnel |
| MinCO2 / MaxCO2 | Minimum/maximum CO2 (alarm is triggered if CO2 exceeds or falls below this value) |
| MinHumidity / MaxHumidity | Minimum humidity (alarm is triggered if humidity exceeds or falls below this value) |
| MinOxygen / MaxOxygen | Minimum Oxygen (alarm is triggered if oxygen exceeds or falls below this value) |
| MinTemperature / MaxTemperature | Minimum temperature (alarm is triggered if temperature exceeds or falls below this value) |
| Rack I/O: | |
| FansPerRack | # of fans per rack |
| FoggersPerRack | # of foggers per rack |
| HumiditiesPerRack | # of humidity sensors per rack |
| LightsPerRack | # of lights per rack |
| MistersPerRack | # of misters per rack |
| TemperaturesPerRack | # of temperature sensors per rack |
| Shelf I/O: | |
| FansPerShelf | # of fans per shelf |
| FoggersPerShelf | # of foggers per shelf |
| HumiditiesPerShelf | # of humidity sensors per shelf |
| LightsPerShelf | # of lights per shelf |
| MistersPerShelf | # of misters per shelf |
| TemperaturesPerShelf | # of temperature sensors per shelf |

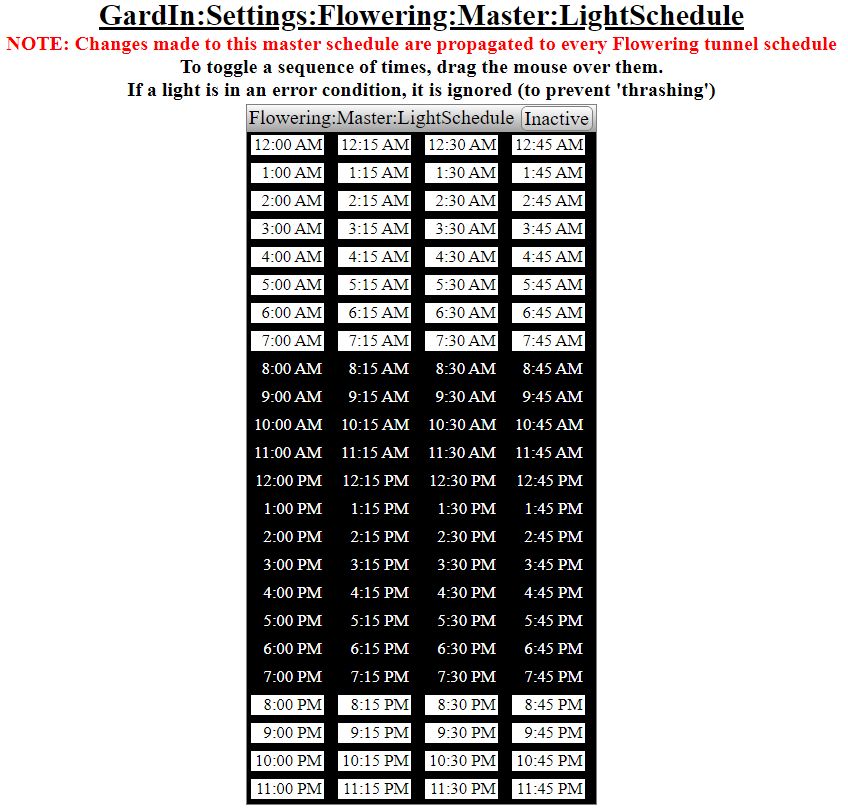

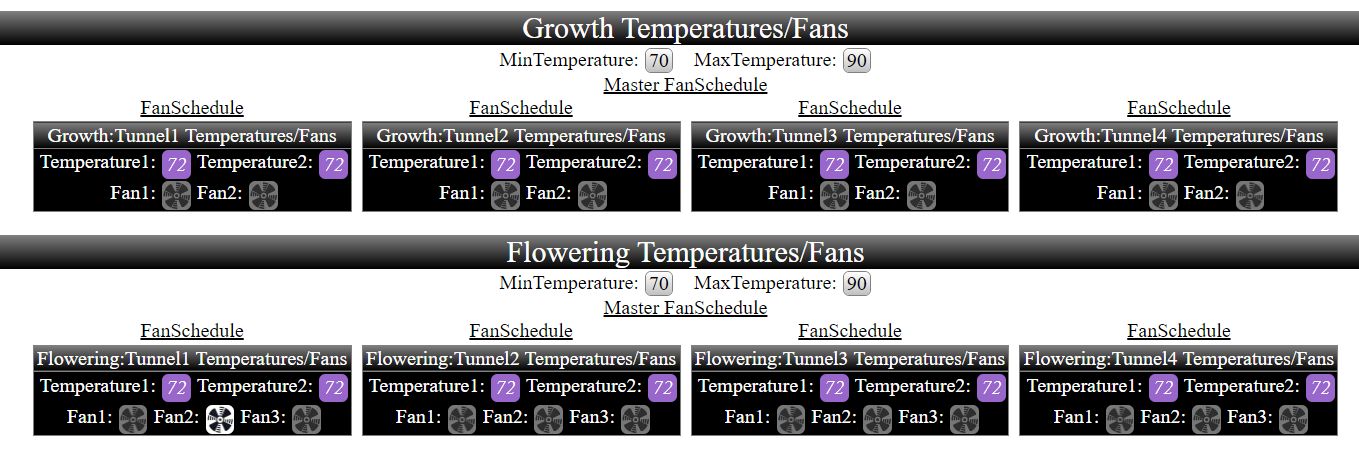

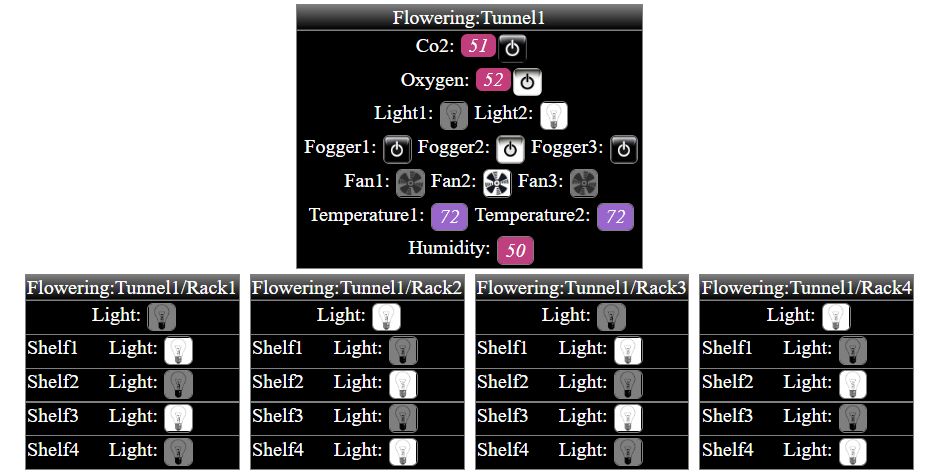

A few example screens:
